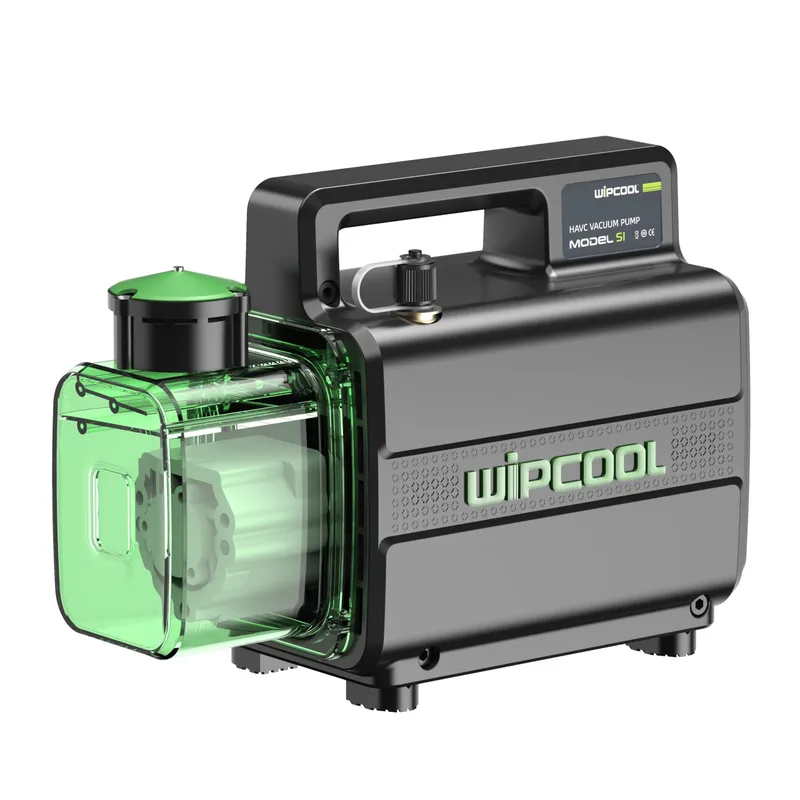

Wipcool S1 Vacuum Pump

Single-stage 230 V vacuum pump with a flow rate of 57 l/min for systems with non-flammable refrigerants, including R404A, R407A and R134a. Reaches a vacuum of 150 microns.

  • Single-stage pump
  • Transparent oil reservoir
  • Built-in check valve
  • Weight 3.3 kg
  • 24-month warranty
  • Service by the distributor in the country of purchase
Key parameters
57l/min
Max. flow rate
150mikronów
Ultimate vacuum
1/4" SAE
Connections
Net list price
Request a quote
Request a quote
Where to buy

The Wipcool S1 is a single-stage, 230 V mains-powered vacuum pump for systems with non-flammable refrigerants, including R404A, R407A and R134a. It has a flow rate of 57 l/min, reaches a vacuum of 150 microns, and its 1/4" SAE connection fits a standard charging hose. Vacuum pump oil is included. The pump is suited to light service work and small refrigeration systems with non-flammable refrigerants.

Note: Fill the pump with oil before first use.

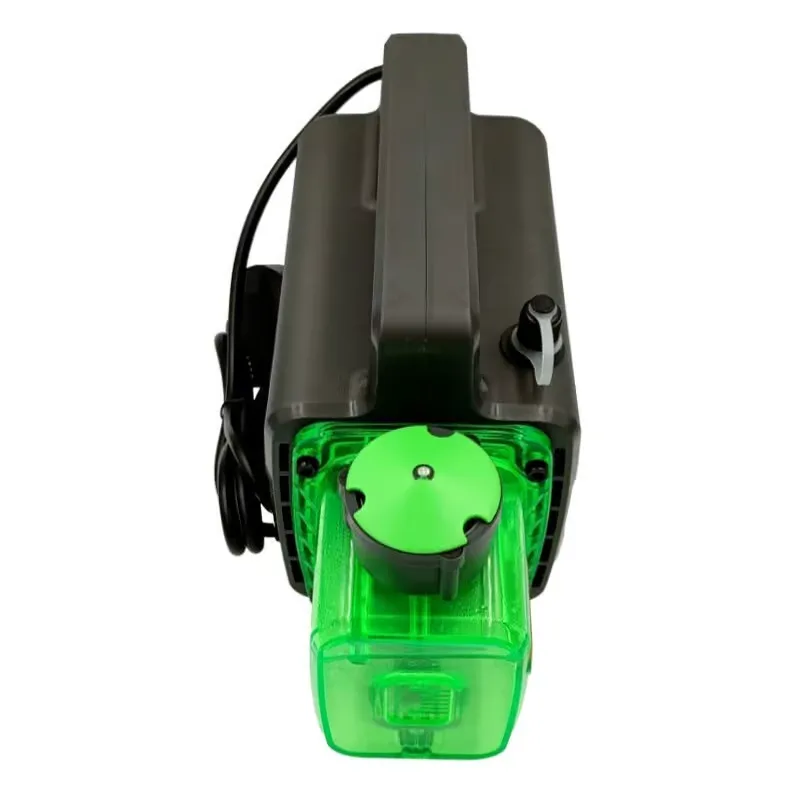

Oil condition visible in the reservoir
The transparent reservoir shows the oil level and colour, so you can check the oil condition without opening the pump.
Check valve as standard
The built-in check valve prevents oil from flowing back from the pump into the system.
Oil leak protection
The patented pump design reduces the risk of oil leaks.
Compact housing
The pump measures 266 × 121 × 194 mm and weighs 3.3 kg, so it is easy to carry.

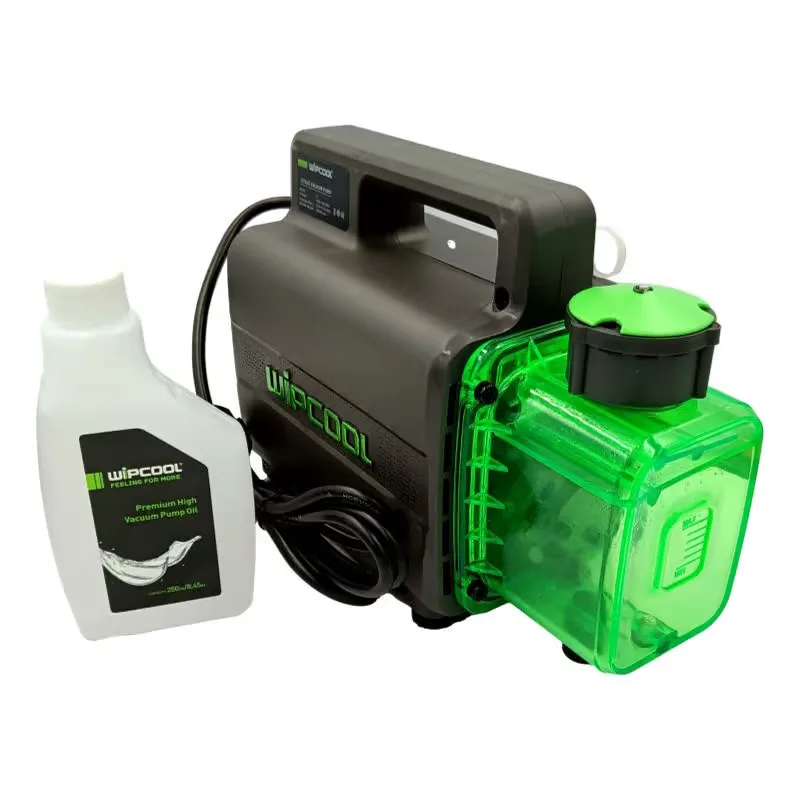

In the box

  • S1 Vacuum Pump
  • Vacuum pump oil
  • User manual
